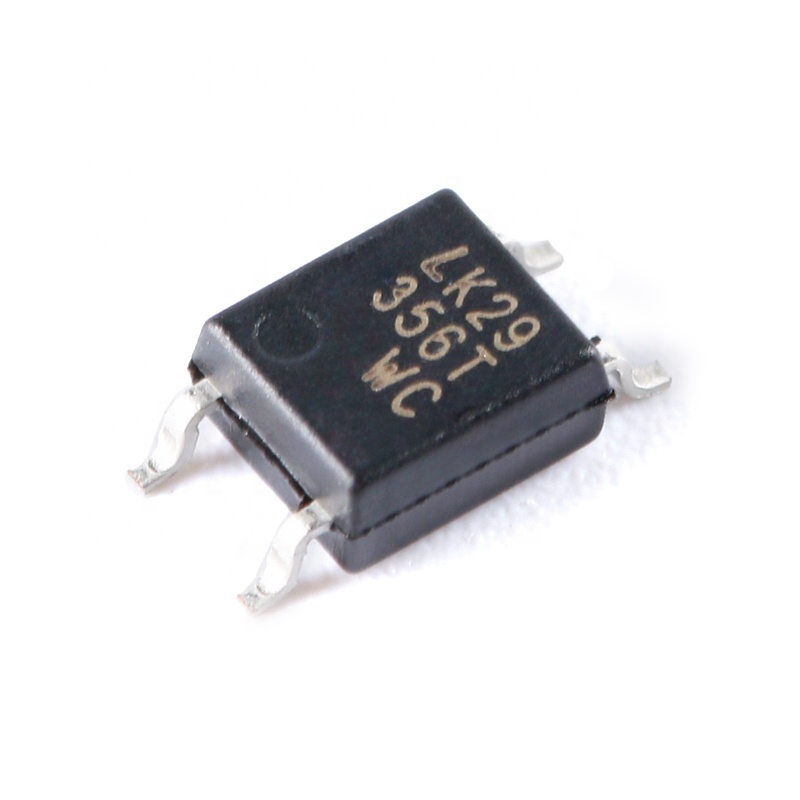

OPTO LTV356-C SOP-4

Mô tả sản phẩm:
Description
OPTOISOLATOR 3.75KV TRANS 4-SOP
Detailed Description
Optoisolator Transistor Output 3750Vrms Channel 4-SOP

Thông số kỹ thuật:
- Package: Tape & Reel (TR)
- Cut Tape (CT)
- Digi-Reel®
- Part Status: Active
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 20% @ 1mA
- Current Transfer Ratio (Max): 400% @ 1mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: AC, DC
- Output Type: Transistor
- Voltage - Output (Max): 35V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Vce Saturation (Max): 200mV
- Operating Temperature -30°C ~ 110°C
- Mounting Type Surface Mount
- Package / Case 4-SMD, Gull Wing
- Supplier Device Package 4-SOP
- Number of Channels 1
- Current - DC Forward (If) (Max) 50 mA

Datasheets:
tài liệu tham khảo
