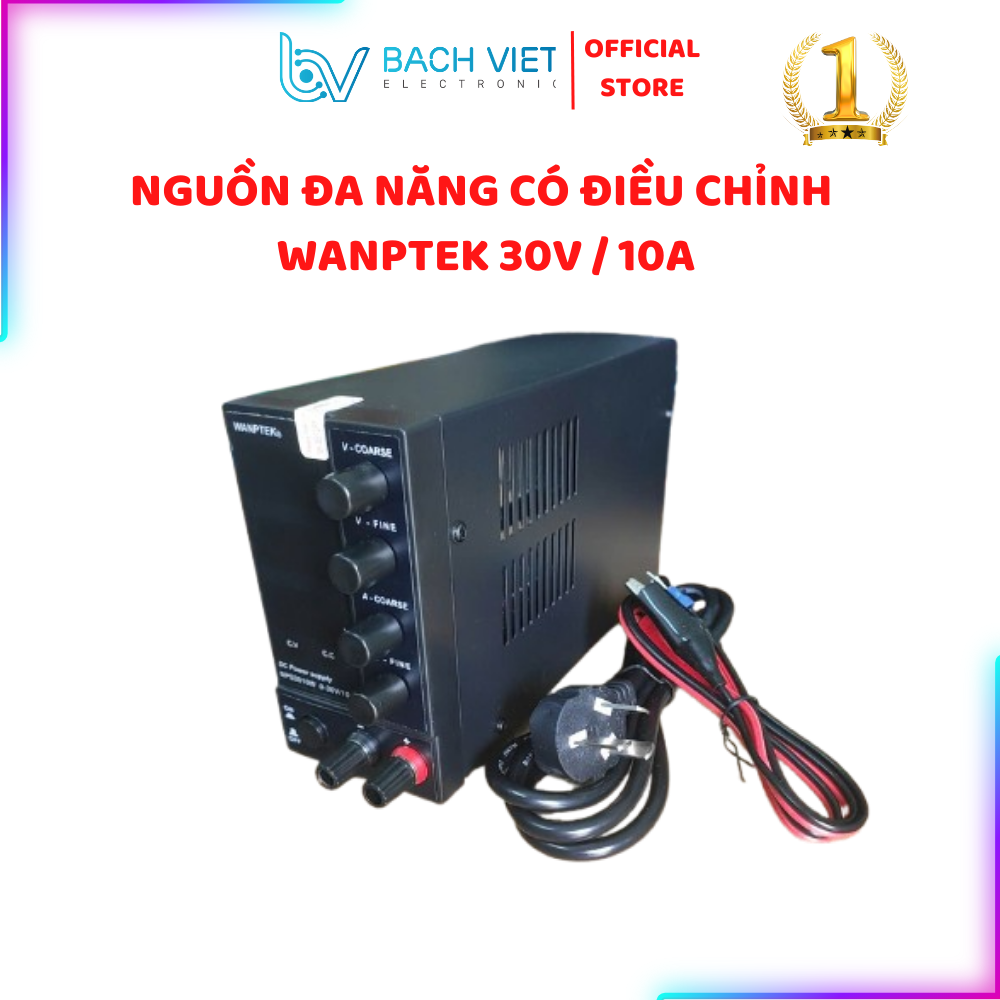

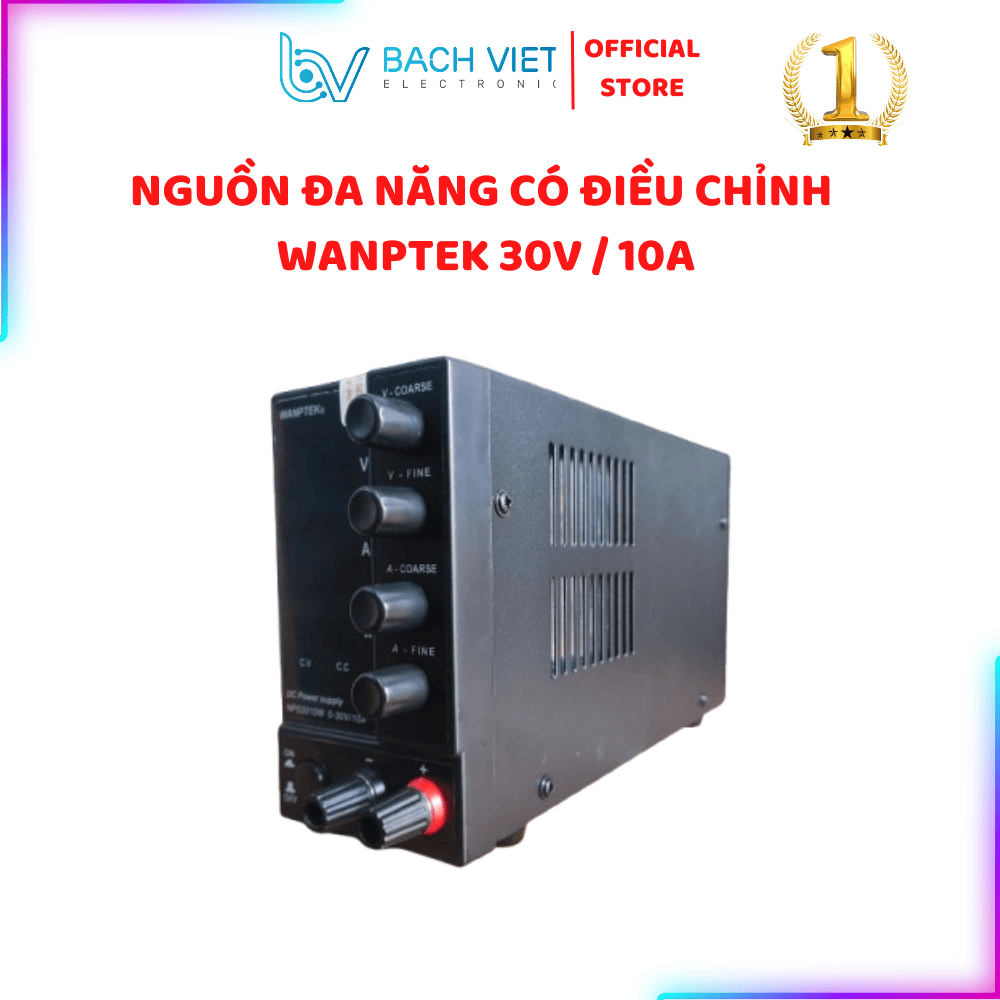

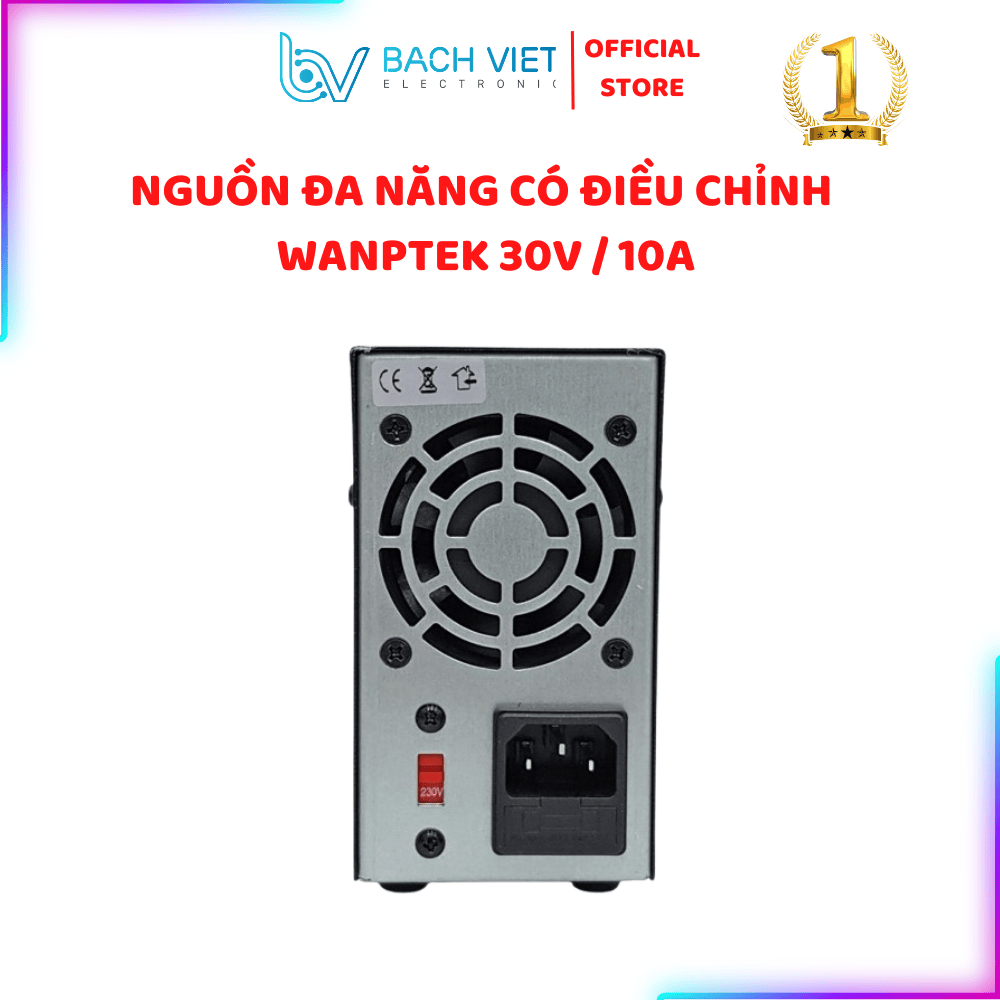

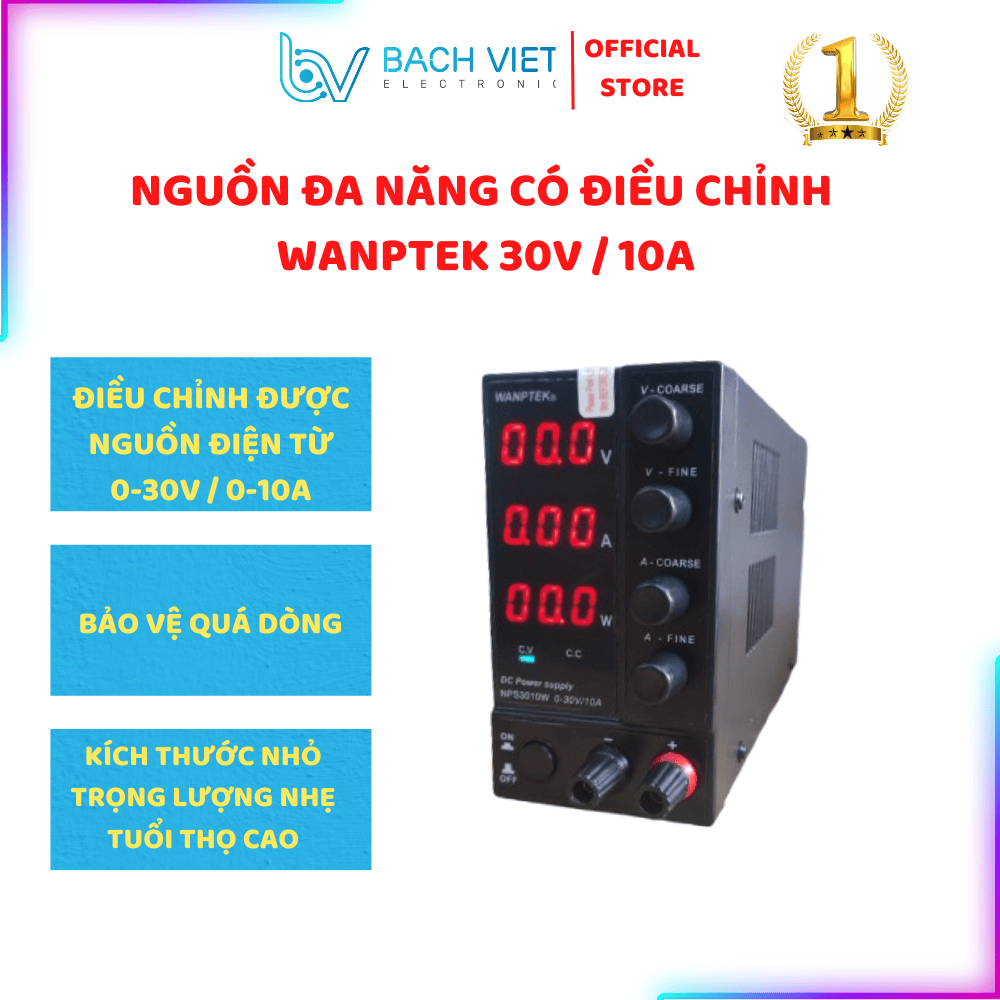

Nguồn thí nghiệm WANPTEK NPS3010W 30V 10A sai số 0.001

1.950.000₫



The NPS-W series is a three-window display mini DC power supply that simultaneously displays voltage, current, and power. This product improves the shortcomings of traditional linear power supplies that are bulky, heavy, and inefficient.

Features:
LED 3 digits display of voltage, current and power, high precision with single channel output.
Voltage stabilization, current limiting, simple operation feature the DC power supply.
Over voltage protection(OVP), over current protection(OCP) with over temperature protection.
Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting protection mode, and any external service state will not be damaged.
With replaceable fuse for safe use, convenient to change the fuse.
Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need DC regulated power supply.

Specifications:
Color: White / Black (Optional)
Plug Type: UK
Model: NPS3010W
Output Voltage: 0~30V
Output Current: 0~10A
Output Power: 300W

WORKING ENVIRONMENT:
Input Voltage: AC 230V/115V ± 10%; 50Hz/60Hz
Working Temperature: 0~40℃; Relative Humidity: <80%RH
Storage Temperature: -10~70℃; Relative Humidity: <70%RH

CONSTANT VOLTAGE CV:
Voltage Stability: 0.1% ± 3mV
Load Stability: 0.2% ± 3mV
Ripple Voltage: =0.5% Vp-p
0 to rated voltage continuously adjustable

CONSTANT VOLTAGE CC:
Current Stability: 0.1% ± 3mA
Load Stability: 0.2% ± 3mA
Ripple Current: =0.5% Vp-p
Recovery Time: =500μS
Temperature Coefficient: =100ppm/℃
0 to rated current continuously adjustable

DISPLAY:

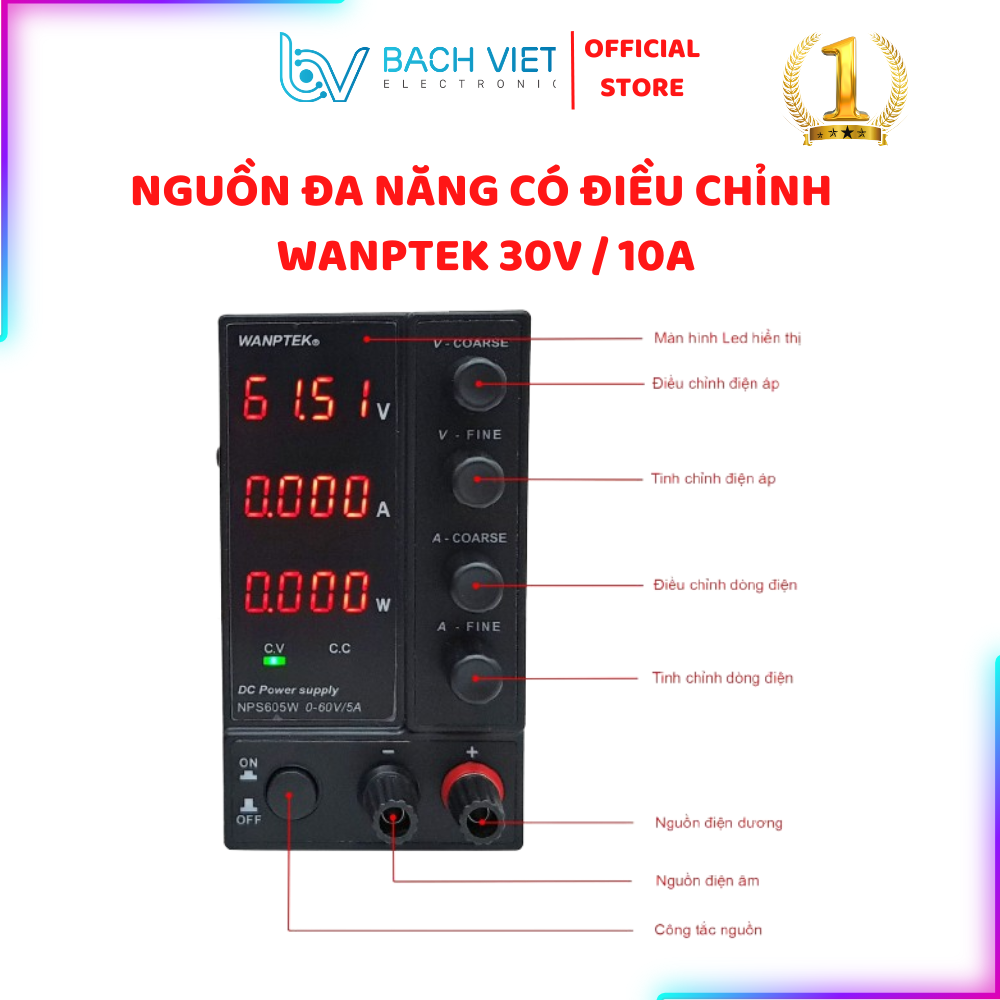

Three-window digital tube display: voltage, current, power
Display Accuracy: 0.5% ± digits
Display Resolution: voltage 0.1V; current 0.01A; power 0.1W/1W

SIZE AND WEIGHT:
Item Size: Approx. 230 * 130 * 70mm / 9.06 * 5.12 * 2.76in
Item Weight: 1372g / 48.39oz
Package Weight: 1550g / 54.69oz
Package Size: Approx. 29 * 18 * 10.5cm / 11.42 * 7.09 * 4.14in

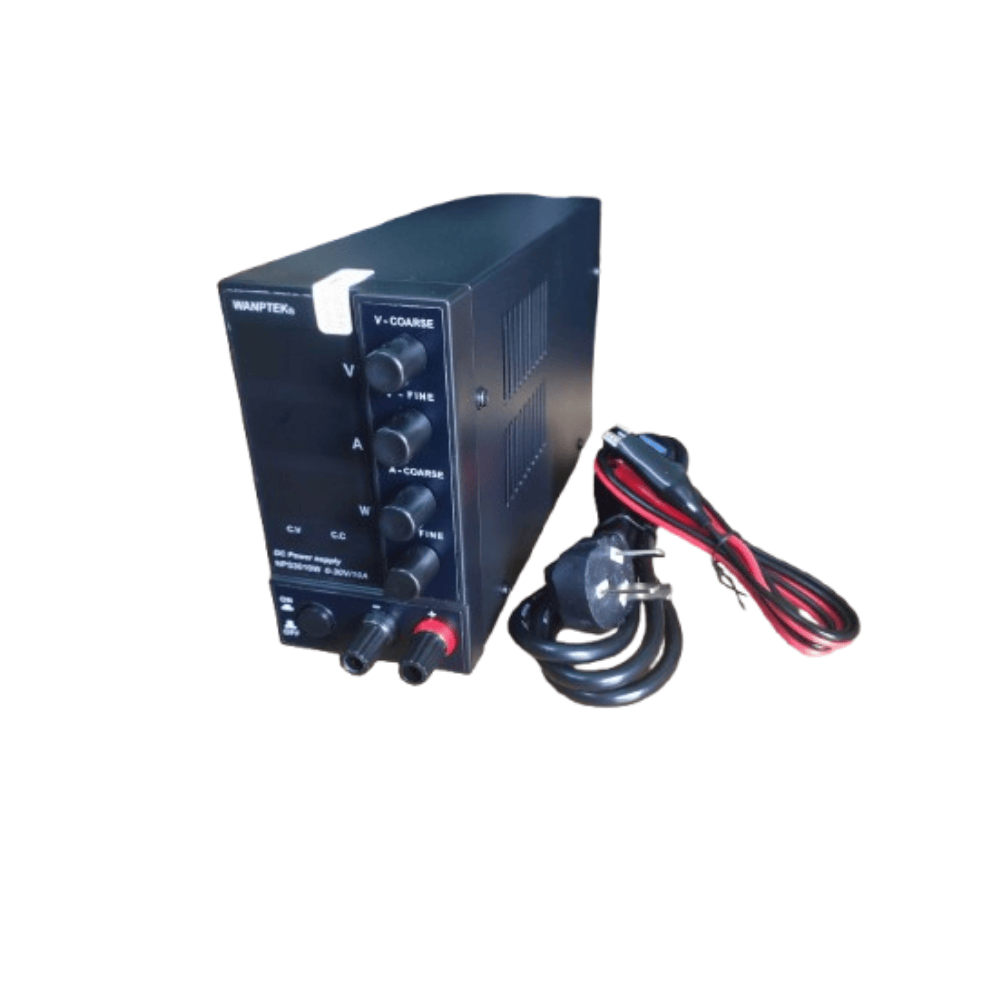

Package List:
1 * DC Power Supply
1 * Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
