SIM800L GPRS MICROSIM ( 7C3.2 )

155.000₫

Hết hàng


Specification

  • Supply voltage: 3.8V - 4.2V
  • Recommended supply voltage: 4V
  • Power consumption:
    • sleep mode < 2.0mA
    • idle mode < 7.0mA
    • GSM transmission (avg): 350 mA
    • GSM transmission (peek): 2000mA
  • Module size: 25 x 23 mm
  • Interface: UART (max. 2.8V) and AT commands
  • SIM card socket: microSIM (bottom side)
  • Supported frequencies: Quad Band (850 / 950 / 1800 /1900 MHz)
  • Antenna connector: IPX
  • Status signaling: LED
  • Working temperature range: -40 do + 85 ° C

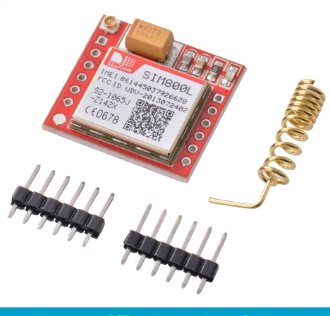

Set includes:

  • SIM800L module
  • goldpin headers
  • wire antenna
  • PCB antenna with pigtail and IPX connector

Module pinout







Pinout (bottom side - left):

  • RING (not marked on PBC, first from top, square) - LOW state while receiving call
  • DTR - sleep mode. Default in HIGH state (module in sleep mode, serial communication disabled). After setting it in LOW the module will wake up.
  • MICP, MICN - microphone (P + / N -)
  • SPKP, SPKN - speaker (P + / N -)

Pinout (bottom side - right):

  • NET - antenna
  • VCC - supply voltage
  • RESET - reset
  • RXD - serial communication
  • TXD - serial communication
  • GND - ground

Additional information:

FILES

SIM800L_Hardware_Design_V1.00.pdf

SIM800L Hardware Design

SIM800_Series_AT_Command_Manual_V1.09.pdf

SIM800 AT Commands
