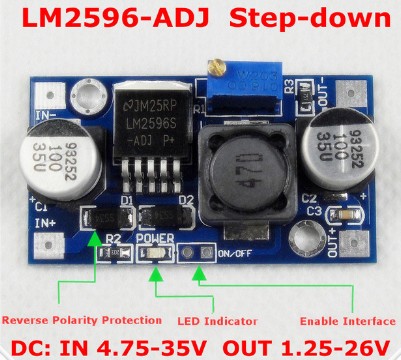

hạ áp LM2596 3A (5C4.1)
18.000₫
Description
| Module properties | Non-isolated BUCK | Rectifier | Non-synchronous rectification |
| Input Voltage | 4V-35V | Output Voltage | 1.25V~30V |
| Output Current | 3A (max) | Conversion efficiency | 92% (highest) |
| Switching Frequency | 150KHz | Output voltage ripple | 30mV |
| Load regulation | +/- 0.5% | Voltage Regulation | +/-2.5% |
Feature
- This module uses the LM2596 chip, with high efficiency (up to 92%) and small heat. It can bear up to 3A current if with heat sink, or bear less than 2.5A without heat sink.
- With low ESR filter capacitors of Sanyo, this module can make ripple voltage as low as 30mV.
- This module has high reliability due to advanced producing process and strict test.
- Output voltage can be changed between 1.25V ~ 30V
